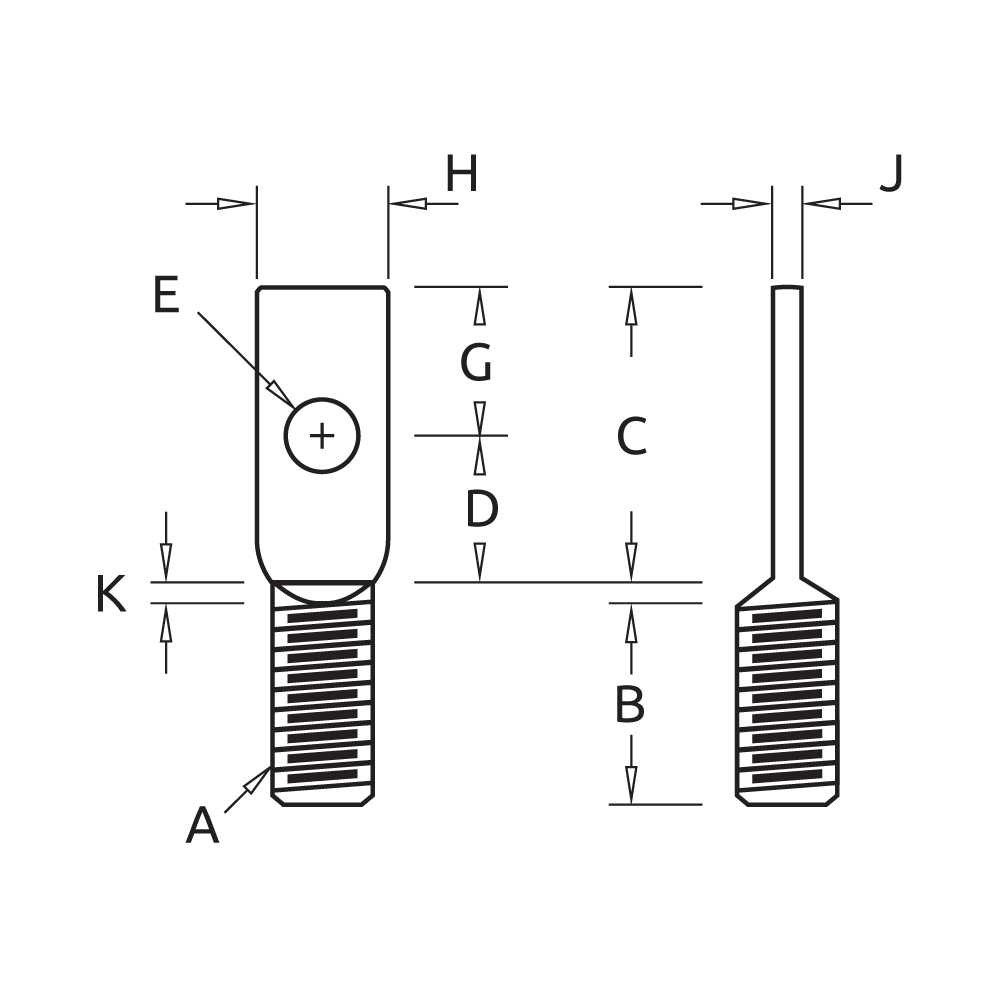

Since 1920
STYLE.
A5
PART NO. 1538
MAT.
Steel
| A: | 1/4-20 |
| B: | SEE DETS |
| C: | 9/16 |
| D: | 3/8 |
| E: | 0.140 |
| G: | 3/16 |
| H: | 3/8 MIN |
| J: | 0.094 |
| K: | 1/16 |
|
Variations on finished dimensions unless otherwise marked |
||
| Basic Dimensions |
Fractional Dimensions |
Decimal Dimensions |
|---|---|---|
| Up to 1/4 | ±1/128 | ±.005 |
| Above 1/4 to 6 | ±1/64 | ±.005 |
| Above 6 to 24 | ±1/32 | ±.010 |
| Above 24 | ±1/16 | ±.015 |
