Since 1920
STYLE.
A2
PART NO. 2221
MAT.
Steel

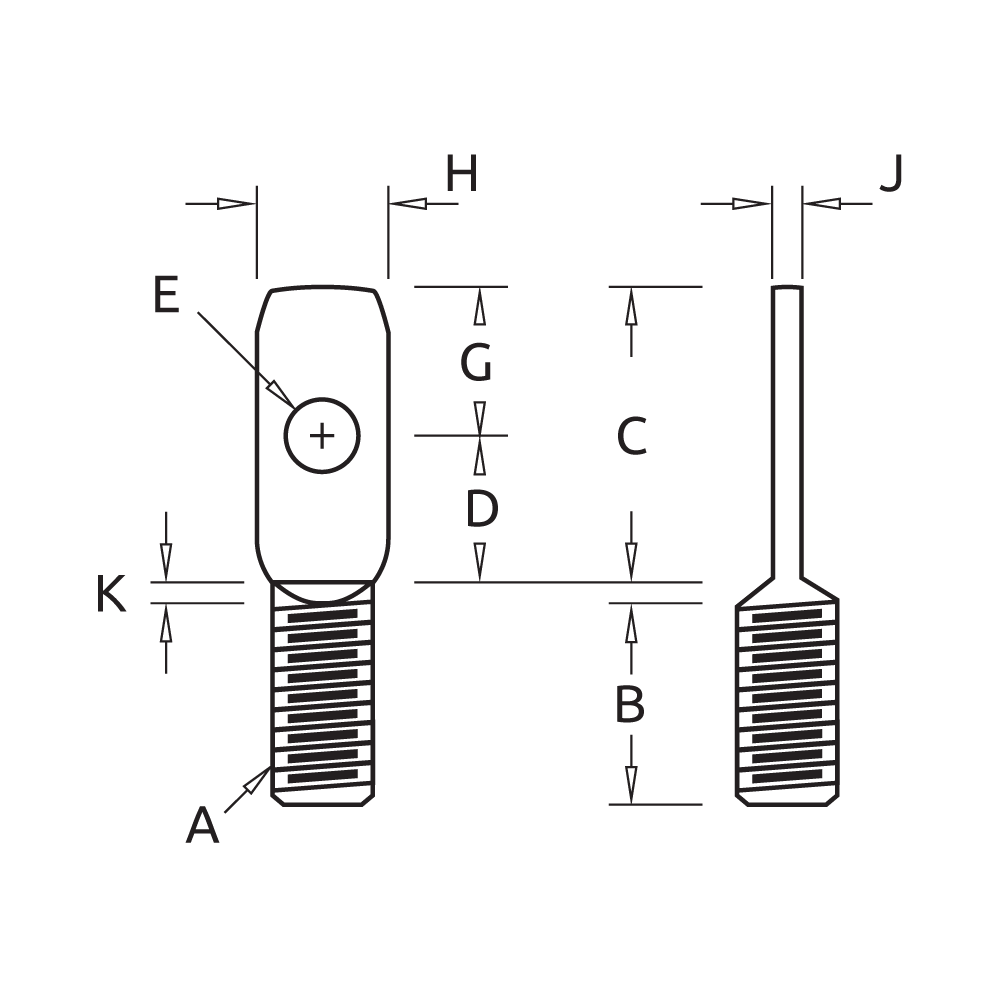

| A: | 10-32 |
| B: | 5/8 SEE DETS |
| C: | 9/32 |
| D: | 5/32 |
| E: | 0.065 |
| G: | |
| H: | 1/4 |
| J: | 0.093 |
| K: | 1/16 |
|
Variations on finished dimensions unless otherwise marked |
||
| Basic Dimensions |
Fractional Dimensions |
Decimal Dimensions |
|---|---|---|
| Up to 1/4 | ±1/128 | ±.005 |
| Above 1/4 to 6 | ±1/64 | ±.005 |
| Above 6 to 24 | ±1/32 | ±.010 |
| Above 24 | ±1/16 | ±.015 |
